Tapered Roller Curve Manufacturer
Conveline Rollers is the top tapered roller curve manufacturer in India, offering top-quality solutions for smooth and efficient material handling. Conveline tapered curve roller units are designed to provide easy directional changes in conveyor lines, making them ideal for industries that require precise product movement. These rollers maintain product orientation while navigating curves, providing a continuous and controlled flow of goods. The tapered shape of the rollers allows for varied angular speeds across the roller’s surface, keeping items aligned while reducing wear and tear. Our taper roller curve conveyors are suitable for handling loaded pallets, drums, cartons, and containers with ease. We offer multiple width and angle options to cater to different operational requirements. Conveline rollers are built with durable materials such as zinc-plated steel or stainless steel to enhance performance and longevity. A non-standard 45-degree spur can also be applied based on specific needs.
Conveline Rollers offers tapered curve conveyor rollers that reduce product sliding, making them perfect for warehouse, logistics, and industrial applications. Our advanced engineering and commitment to quality ensure that every roller curve system we produce meets high-performance standards for durability, reliability, and smooth operation.
How Does a Tapered Roller Curve Work?
A tapered roller curve is specifically designed to guide products through directional changes while maintaining their orientation. Tapered Curve Rollers, compared to standard rollers, have a conical shape, which means the outer edge moves faster directly than the inner edge. This unique feature ensures a smooth transition without product misalignment or disruptions. When a product enters a tapered roller curve conveyor, the rollers help maintain consistent motion by compensating for the speed differential along the curve. The gradual tapering provides minimal friction, preventing jamming or uneven movement. The design is particularly beneficial for transporting heavy loads like pallets, containers, and bulk packages, reducing strain on the conveyor system.
These tapered rollers are commonly used in logistics hubs, warehouses, e-commerce fulfillment centers, and manufacturing plants where efficient directional changes are essential. Whether moving goods in a straight path or through intricate conveyor layouts, tapered curve conveyor rollers enhance overall productivity by streamlining workflow and ensuring the seamless transport of goods.

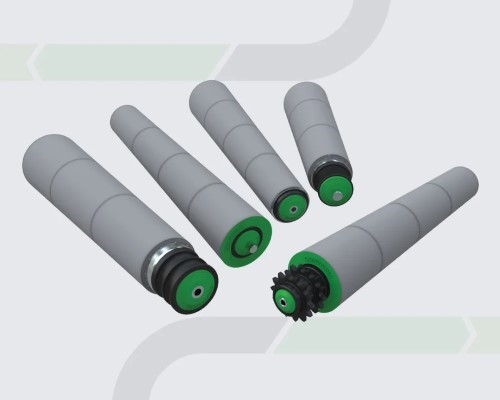

Specifications:
| Series | Product Features | Diameter Range | Shaft Range |
|---|---|---|---|

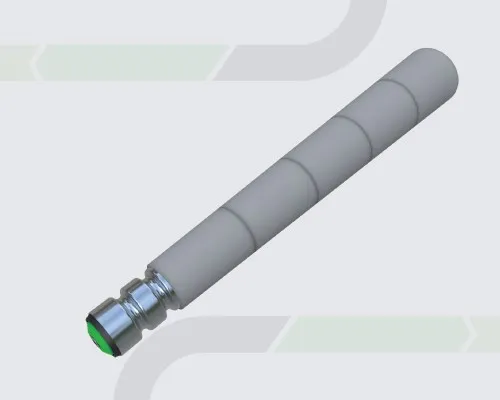

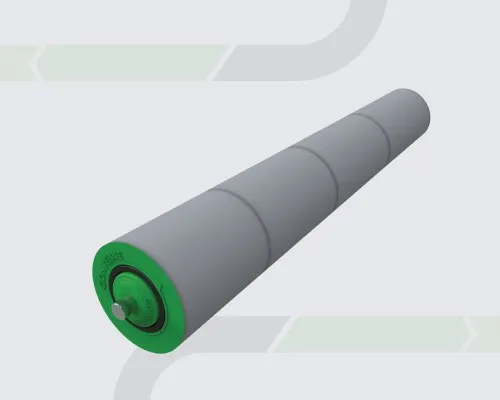

| 1401 | Gravity tapered roller, attractive look and low noise | 52.9/56 | 12, 14 |
| 1402 | O belt drive, Double grooved tapered sleeve roller, customized groove position | 52.9/56 | 14 |
| 1403 | O belt pulley drive, Double grooved O belt pulley tapered sleeve roller | 52.9/56 | 14 |
| 1404 | Poly vee belt pulley drive tapered sleeve roller, high speed, low noise | 52.9/56 | 14 |
| 1405 | Polymer sprocket drive tapered sleeve roller, medium duty, low noise | 52.9/56 | 14 |
Features of Tapered Roller Curve
- Optimized for Directional Changes: Specially designed to guide products smoothly around curves without causing misalignment or disruption.
- Maintains Product Orientation: The tapered shape ensures that products retain their position while transitioning through the curve.
- Durable and Long-Lasting: Constructed from high-quality zinc-plated steel or stainless steel to withstand high loads and harsh environments.
- Low Friction and High Efficiency: The conical roller design minimizes friction, reducing wear and tear on the conveyor system.
- Available in Multiple Sizes: We manufacture Tapered Roller Curve systems in various widths and angles to suit different industry requirements.
- Ideal for Heavy-Duty Applications: Suitable for moving pallets, drums, crates, and cartons in warehouses, manufacturing facilities, and distribution centers.
- Seamless Integration with Conveyor Systems: Designed to be easily incorporated into existing conveyor layouts without extensive modifications.
- Customizable Design Options: Optional 45-degree spur attachment available based on client needs for added versatility.
- Reduces Operational Costs: Enhances efficiency, reduces manual handling, and minimizes system wear, lowering maintenance costs over time.
- Industry-Specific Applications: Widely used in e-commerce, logistics, automotive, and packaging industries for high-speed material handling.
Conveline Rollers continues to provide high-quality tapered roller curve conveyors that assure smooth product flow, durability, and operating efficiency. Our expertise and superior manufacturing capabilities make us the preferred choice for conveyor roller solutions in India and around the country.
Usage of Tapered Curve Rollers
Tapered roller curves are conveyor rollers that are used in material handling systems to move products and materials around corners or curves in an easy and effective way. Here are some of the usages of tapered roller curve:
- Curve Conveying: Tapered roller curves are primarily used for conveying products and materials around curved sections of a conveyor system. They allow for a smooth transition between straight and curved sections and help to prevent products from getting stuck or jammed.
- Sorting and Merging: Tapered roller curves can also be used in sorting and merging applications, where products or materials need to be directed to specific lanes or merged into a single lane. They can be used in combination with other types of rollers and sensors to create an efficient and reliable sorting system.
- Gravity Conveyor Systems: Tapered roller curves can be used in gravity conveyor systems, where products or materials are moved along a conveyor by gravity. The tapered design of the rollers helps to keep products centered and prevents them from slipping or tipping over as they move around curves.
- Accumulation: Tapered roller curves can also be used in accumulation systems, where products or materials are temporarily stopped or held in place before being released onto the next section of the conveyor. The tapered design of the rollers helps to prevent product damage and allows for smooth and consistent release of products.
Overall, tapered roller curves provide an essential role in material handling systems by assuring the smooth and effective movement of products and materials over curves and corners.
Why Choose Conveline
manufacturing Area
Manufacturing Capacity Yearly
Manufactured in India
manufacturer of Conveyor Rollers
Roller Range :
Frequently Asked Questions
Frequently Asked Questions
1. What are the common materials used to manufacture tapered curve rollers?
Tapered curve rollers are usually made of high-quality steel, aluminum, or plastic materials.
2. What is the weight capacity of tapered curve rollers?
The weight capacity of tapered curve rollers may vary depending on the material and size of the rollers. However, they are usually designed to carry light to medium loads.
3. How are tapered curve rollers installed?
Tapered curve rollers can be easily installed in a conveyor system by mounting them onto the conveyor frame using bolts or screws. They can be installed at a variety of angles to create a curve in the conveyor system.
4. What are the benefits of using tapered curve rollers in a conveyor system?
Tapered curve rollers provide a smooth transition for products as they move around a curve in the conveyor system. They also help to reduce product damage, increase efficiency, and minimize the risk of jams or blockages in the system.
