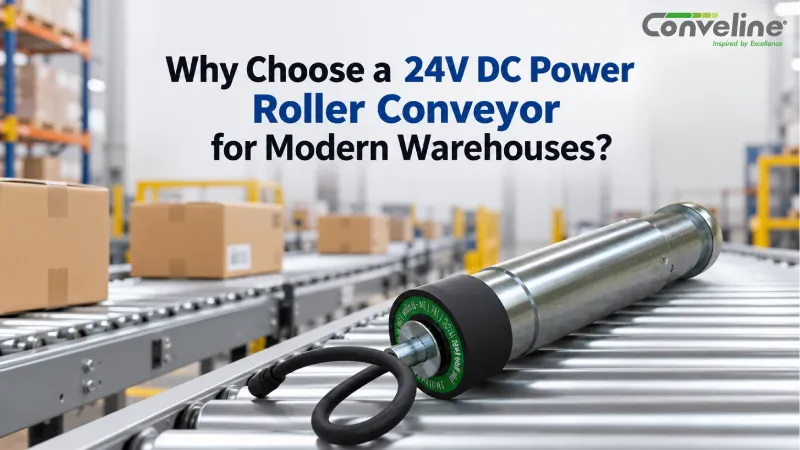

Why Choose a 24V DC Power Roller Conveyor for Modern Warehouses?

A conveyor that runs continuously can consume power even when cartons have stopped arriving. At Conveline Rollers, we offer 24V DC motorized roller solutions built around independently controlled conveying zones.

Companies comparing 24V DC Power Roller Conveyor exporter in India need to look beyond motor voltage and consider control behaviour, product type and layout. For warehouse teams managing order flow, these choices affect how smoothly packages move between receiving, accumulation and dispatch.

Run Conveyor Zones Only When Products Arrive

Our 24V DC system divides the conveyor into sections powered by motorized rollers. With suitable sensors and controls, a zone activates when a product needs to move and stops after the item leaves. This reduces unnecessary running compared with a continuously driven line and can lower energy use during gaps in warehouse activity.

The zoned arrangement also makes product movement easier to manage at individual sections. Different sections of an e-commerce line may face changing demand. Our modular roller arrangement is designed for that type of controlled flow, provided the selected control system supports the required operating logic.

Handle Cartons and Accumulation With Better Control

Rather than relying on one drive for the complete conveyor, our system uses motorized rollers distributed across zones. Integrated sensors can help coordinate product spacing and accumulation, which is useful when the downstream packing or sorting point cannot accept another carton immediately. Performance depends on the selected controls.

We offer belt-assisted and non-belted arrangements for different loads. Belted configurations can suit irregular or soft-bottomed products, while standard boxes and containers may use direct roller movement. A 24V DC Power Roller Conveyor supplier in India should evaluate the load's base, transfer points and conveying direction before recommending a layout.

Adapt the Conveyor to a Changing Warehouse Layout

Our 24V DC conveyor offering supports modular arrangements, including curve options and incline or decline movement where suitable. This matters for warehouses that must route goods between storage, picking and dispatch while working around existing equipment. A modular design can also make later extensions easier to plan than rebuilding a whole continuous-drive arrangement.

For buyers assessing a 24V DC Power Roller Conveyor exporter in India, layout flexibility must be matched with the actual carton dimensions and handling requirements. We look at the product route, desired stopping points and available space before discussing the necessary roller and drive configuration. Each load and slope needs separate review.

Reduce Noise and Plan Maintenance Sensibly

The absence of a large central drive in each zone can support quieter operation around warehouse workstations. Our motorized roller technical listing includes a 55 dB noise figure, with an explicit note that measured values can change with installation conditions. That figure should be understood as product data, not a guaranteed reading for a complete warehouse system.

Zoned movement can also reduce needless component operation during idle periods. We describe the system as low maintenance, but rollers, wiring, sensors and control components still need appropriate inspection. This matters in packaging and automotive facilities with repeated starts and stops.

Compare Roller and Control Specifications Carefully

Our listed powered roller uses a 50 x 1.5 mm tube, with mild steel and stainless steel material options. The motorized roller data specifies a 20-25 VDC operating range, 50 W mechanical performance and IP54 protection. These figures describe the listed roller, not the entire assembly.

The RC20 roller control card is rated for 24V DC and has IP20 protection. It requires external control signals and does not provide zero-pressure accumulation logic by itself. For a warehouse seeking sensor-led accumulation, controller selection therefore matters as much as the roller. Buyers comparing a 24V DC Power Roller Conveyor exporter in India should check the complete control arrangement before ordering.

Why Choose Conveline Rollers?

We provide motorized roller options for warehouse automation, packaging, logistics and related industrial applications. Our published technical information covers tube material, voltage, mechanical performance and control-card features, giving engineering buyers practical points for evaluation. We also offer modular arrangements with sensor integration options, so discussions can begin with the required product movement rather than a generic conveyor layout.

Conclusion

A 24V DC powered roller line is worth considering when your warehouse needs selective movement, controlled accumulation and adaptable conveyor sections. The real decision rests on product characteristics, motor specifications and how sensors communicate with the controls. Our solution range offers several useful configuration choices, but the right outcome begins with the details of your operation. Review those requirements with our team before finalising a conveyor arrangement for your facility.

Planning a controlled conveyor line? Talk to Conveline Rollers about carton sizes, layout and automation needs. Call +91-748-602-3925 or email info@conveline.com for a product discussion. Explore our 24V DC power roller conveyor solutions to find the perfect fit for your facility.
